A Deep Insight about Moulded Case Circuit Breakers

There is a guardian in the complex world of electrical systems, where everything from the tiniest device to the biggest plant is powered by the unseen dance of electrons. The Moulded Case Circuit Breaker (MCCB) from Moulded Case Circuit Breaker Manufacturer, a staple of contemporary electrical engineering, is frequently disregarded yet vital to the security and effectiveness of electrical networks.

The Protector's Anatomy: Inside an MCCB

The Frame provides insulation and structural strength by housing all the components.

The movable and stationary contacts in the contact system control whether electricity flows through them or not.

The MCCB's brain, the Tripping Unit, is furnished with magnetic and thermal sensors to identify overloads and short circuits.

The Operating Mechanism responds to tripping signals automatically and allows manual control (to open or stop the circuit).

The Arc Chutes ensure a quick and safe separation by putting out electrical sparks that arise while cutting high current flows.

This well-planned assembly guarantees that, in the event of an electrical malfunction, the MCCB from Modular Device Supplier will act quickly to safeguard the circuit, acting as a real protector of the electrical domain.

The Changing Function of MCCBs

MCCBs have historically been primarily used to safeguard electrical circuits from overloads and short circuits, but as technology has advanced and electrical systems have become more complicated, so has their role. Modern MCCBs are essential to energy management plans because they maximize power usage and raise facility efficiency. The introduction of smart MCCBs, which include digital monitoring and communication features, has allowed them to provide previously unheard-of insight into the operation of electrical systems, allowing for predictive maintenance and reducing downtime.

Getting Around the Maze of Selection

Rating at the Moment: Compare the maximum current that the circuit can handle under typical circumstances with the MCCB's rating.

Features of Tripping: Depending on the requirements of your circuit, choose between thermal, magnetic, or electronic tripping mechanisms.

Breaking Capacity: Verify that the MCCB is capable of handling the system's maximum possible short-circuit current.

Guidelines and Accreditations: Check that the MCCB and Modular Device China are certified for quality and safety and comply with applicable standards.

RCCB Ensures Electrical Safety in Your Home

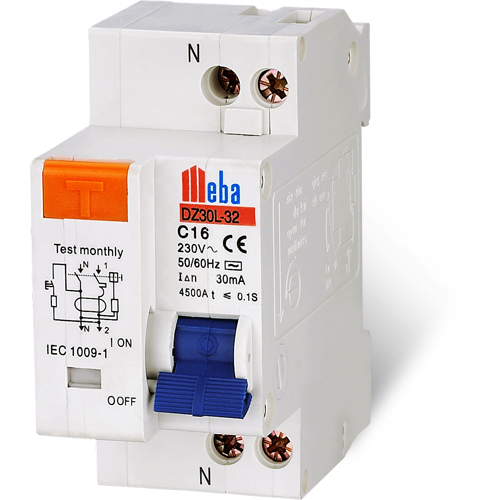

A sophisticated electrical safety device, RCBO Residual Circuit Breaker, guards against fault currents as well as overcurrents by keeping an eye on the current flowing through a circuit. It accomplishes this by spotting electrical current imbalances and quickly cutting the circuit when a problem is found, greatly lowering the possibility of electric shock and fire.

How Do RCBOs Operate?

Finding Residual Current: The live (phase) and neutral wire balance of a circuit is continually monitored by the RCBO. An appliance's input current and output current are equal in a healthy circuit. An imbalance results when a human unintentionally touches a live component because part of the current passes through it and down to the ground, lowering the returning current. This imbalance is frequently detected by the RCBO in milliseconds, at which point it trips, turning off the electrical supply and averting major harm or death.

Protection against Overcurrent: Short circuits and overloads can result in overcurrent. To reduce the risk of fire dangers and potential damage to appliances and wiring, the RCBO recognizes these situations and disconnects the circuit. The RCCB Circuit Breaker is also vital.

Why Do RCBOs Matter?

Safety: An RCBO's main function is to offer a high degree of protection against the possibility of fire and electric shock. It guarantees occupant safety by identifying fault currents and overloads.

Cost-effectiveness and Convenience: By combining the functions of an MCB with an RCD, RCBOs save installation costs and the requirement for separate devices, freeing up space in the consumer unit (fuse box).

Compliance: To fulfill electrical safety requirements, several areas have legislation requiring the installation of RCBOs in new construction and during significant modifications.

Establishment and Upkeep

Even though RCBOs are sturdy and dependable, a trained electrician should always perform their installation and maintenance. When an RCBO from RCBO Circuit Breaker Manufacturer is installed correctly, it is guaranteed to be appropriately rated for the circuit it guards, improving safety and adhering to regional electrical codes. As advised by the manufacturer, routine inspections and testing are essential to preserving their protective qualities over time.
